CDMAM 4.0 & Analyser

Features

The Artinis CDMAM 4.0 is the next generation Mammography Contrast Detail Phantom with precise specifications specially designed for measuring imaging performance for digital mammography. The phantom is optimized for European Guidelines for Quality Assurance in Digital Mammography. The gold discs are placed in the area of interest of the psychometric curve for accurate determination of Contrast Detail curves and a high dose sensitivity. The phantom is created from a highly accurate production process.

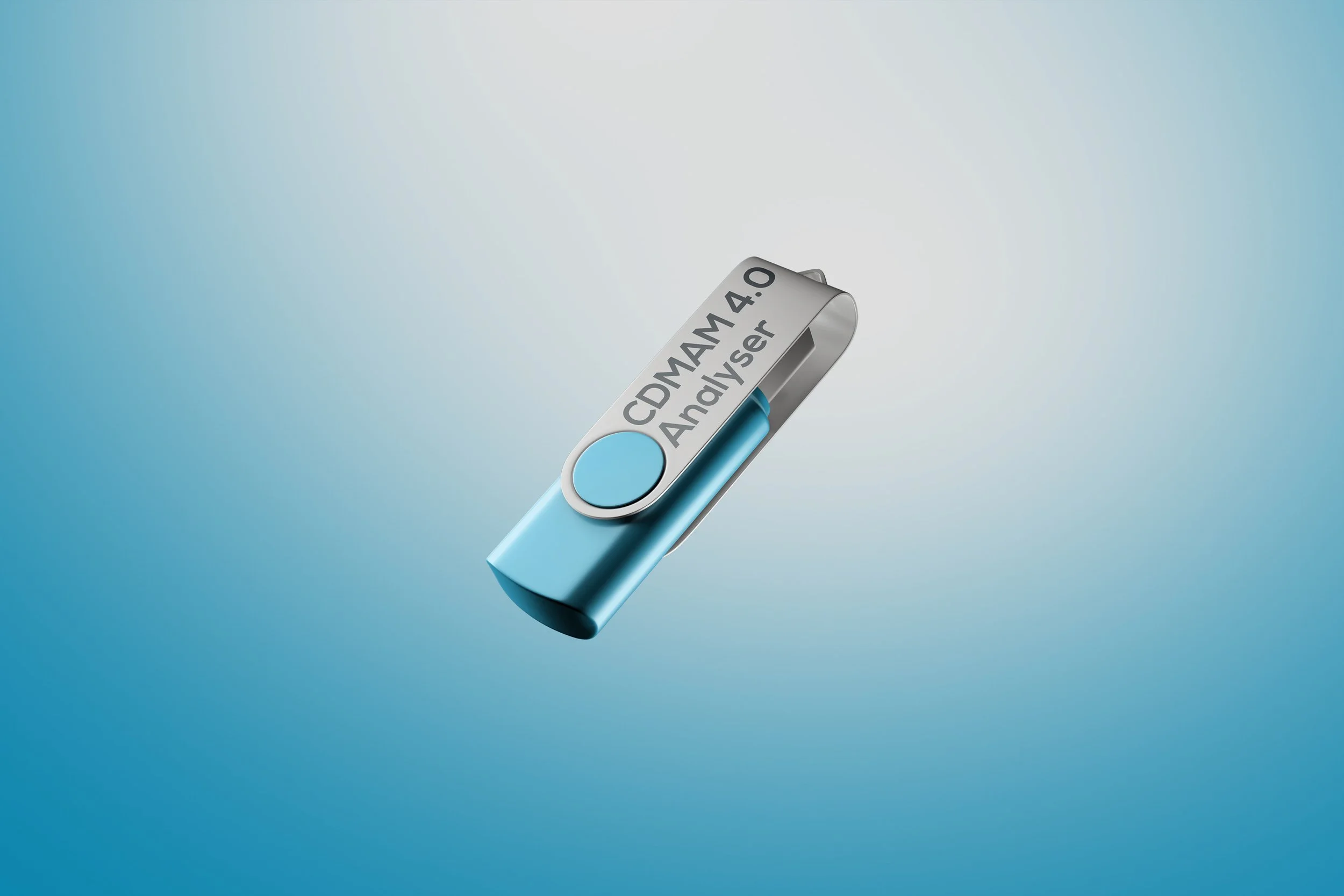

The CDMAM 4.0 Phantom has been specially designed for automatic image scoring. For analysis of the phantom images, we have developed CDMAM 4.0 Analyser Software, based on CDCOM for CDMAM 4.0. With the analyser software, the threshold contrast thicknesses are determined according to the supplement to the 4th edition of the European Guidelines.

Applications

• Quality control and assurance for imaging performance of digital mammography systems

• Optimization and evaluation of digital mammography systems

• Determination of the optimum exposure technique comparison of image quality at various thicknesses of PMMA

• Determination of the optimum background density

• Comparison of different mammography systems

 PRODUCT SPECIFICATIONS

• 672 gold discs divided into 21 exponential steps, diameter ranging from 0.08 to 2.0 mm

• Every single diameter has its own optimized gold thickness range with 16 different thickness steps

• 43 additional reference discs for optimal computerized scoring

• 0.5 mm polished aluminium (99.5%) base

• PMMA cover (240 x 162 x 3 mm)

• Includes 4 PMMA plates (10 mm polished appearance, thickness tolerance ± 0.1 mm)

Standards and guidelines

• European guidelines for quality assurance in breast cancer screening and

  diagnosis, fourth edition

• European Protocol for the Quality Control of the Physical and Technical

  Aspects of Digital Breast Tomosynthesis Systems version 1.03

• NHSBSP Equipment Report 0604, Commissioning and Routine Testing of Full Field Digital Mammography Systems Published April 2009 (Version 3)

• IEC 61223-3-2

Software features

• Fast, objective Image Evaluation

• Multiple groups with images to compare over period changes

• Batch analysis of many images

• Automatic Report Generation

• Shows in between results (score diagram, psychometric curves, individual CD curves)

• IQFInverse scores and Total detected (%) number of gold discs are shown

• Drag and drop images to the software

• Images can be viewed and inspected by zooming in

Image evaluation method

• Accumulate the results of the automatic EUREF readout software CDCOM

• Determine the psychometric curves

• Detect the threshold thickness of the different diameters

• Correct to human readout values

• Calculate the contrast detail (CD)

Download all specifications

Requirements

• Image format: DICOM

• Free usb port needed

• Runs on Windows 7, 8, and 10

• In combination with the CDMAM 4.0 Phantom
